Yuxuan Li

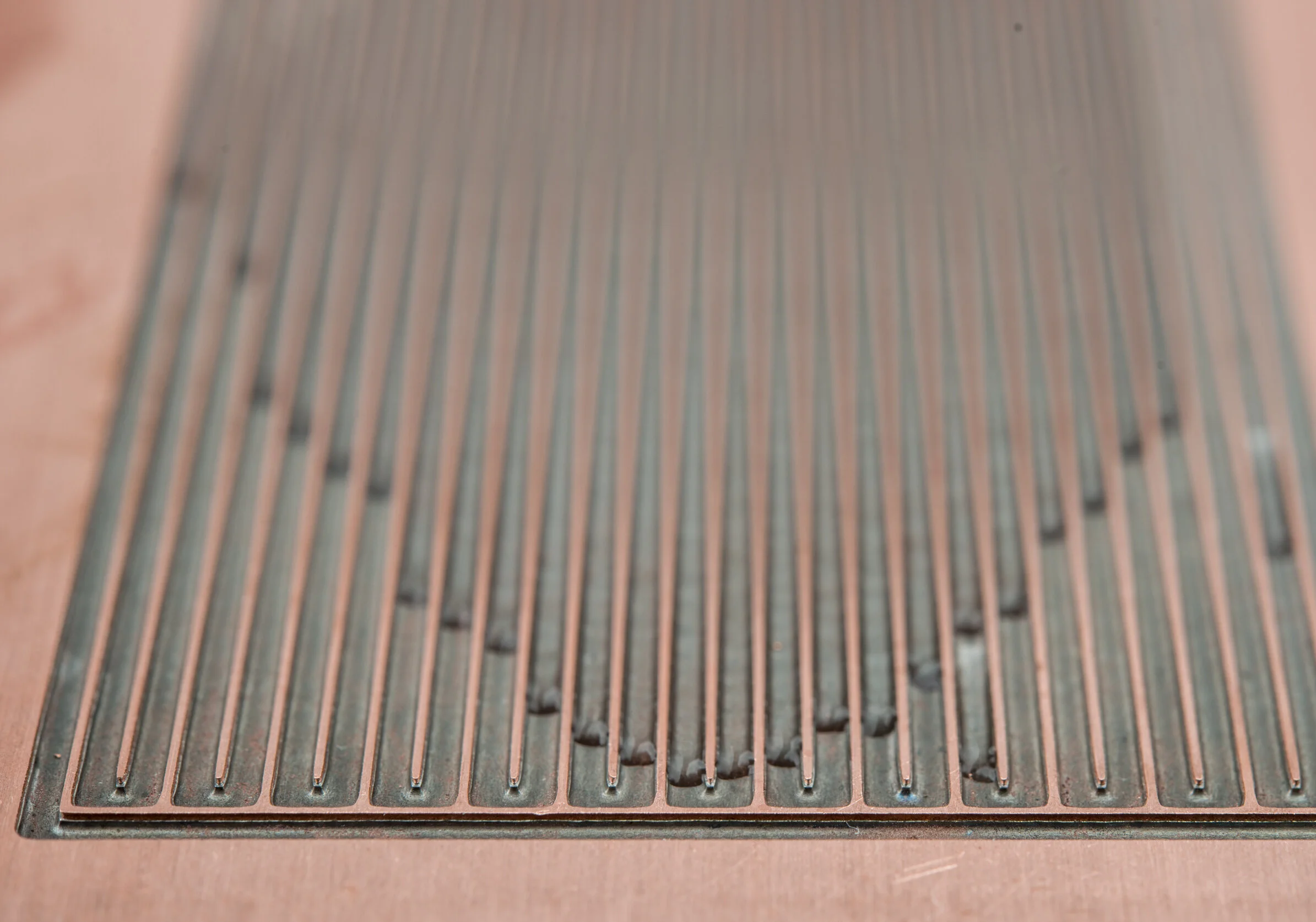

Oscillating heat pipes (OHPs) consist of a serpentine capillary channel partially filled with liquid that is embedded in a thermally-conducting solid. They have significant advantages for cooling electronics and aerospace systems. The model reported here aims to capture the essential physics of an OHP with minimal complexity and treats some parameters typically derived from correlations or experiments (such as the film thickness and film triple point velocity) as functions with tunable constants to be estimated by data assimilation. This model contains two modules. The first uses a novel and flexible formulation of the conducting solid, solving the two-dimensional heat equation in a thin plate, with evaporators and condensers as immersed forcing terms and the OHP channel as an immersed line source. The second module solves one-dimensional fluid motion and heat transfer equations within the fluid-filled channels based on mass, momentum, and energy conservation, nucleate boiling, and bubble dryout. It extends the commonly-used film evaporation-condensation model, allowing both variable liquid film thickness and length and thereby enabling the model to capture dryout. These modules are weakly coupled, in that wall temperature in the channels are obtained from the first module and heat flux from the channels determines the line source strength. After minimal training, the thermal conductance calculated by this model shows good agreement with a wide range of experiments performed by Drolen et al. (Drolen et al, JTHT, 2022). In particular, the model successfully predicts the experimentally-observed transition from stable OHP operation to dryout, for the first time to the authors' knowledge.

Two-dimensional shock–bubble interaction is an analogy of the steady three-dimensional jet flow in a scramjet. On the basis of Navier–Stokes simulations, a cylindrical bubble embedded with hydrogen surrounded by air was accelerated by a shock. The evolution can be divided into the lobe-emergence stage, the back-lobe suction stage, and the equilibrium stage. Based on the inhomogeneity between the hydrogen mass fraction and the vorticity field, a correlation coefficient is proposed to quantitatively determine the starting moment of the equilibrium stage. In the equilibrium stage, quasi-Gaussian distributions are modeled for the mass fraction and the vorticity. Surface integrals are performed to derive corresponding mixedness and circulation models, both controlled by two statistical parameters (standard deviation and peak value). Such Gaussian integrated models are universal for different cylindrical bubble aspect ratios (AR=0.5–2) and shock Mach numbers (M=1.22–2). They provide a statistical perspective of late-time SBI evolution in addition to the description from certain physical quantities and help better understand the compressible mixing of scramjet combustors.
